1989 1990 Dodge Monaco, Eagle Premier 3.0L Powertrain Diagnostic Procedures Factory Service Manual
This is an original Mopar OEM Dodge/Eagle factory shop repair Powertrain Diagnostic Test Procedures Service Manual for the 1989 & 1990 Dodge Monaco & Eagle Premier 3.0L Engine. The manual also includes a supplement on Passive Restraints Fault Diagnosis. It’s the official manual, published by Chrysler, for mechanics and auto technicians to use in dealer service departments. It’s not a reproduction or pirate copy. It’s the most complete information available for this make and model. The best version may cost a little more, but you deserve the best.
This book covers all options, models, trims and body styles of the 1989 & 1990 Dodge Monaco & Eagle Premier with the 3.0L Engine.
This book includes all the adjustment procedures, specifications, and wiring diagrams that you will need to diagnose faults and problems in the system.

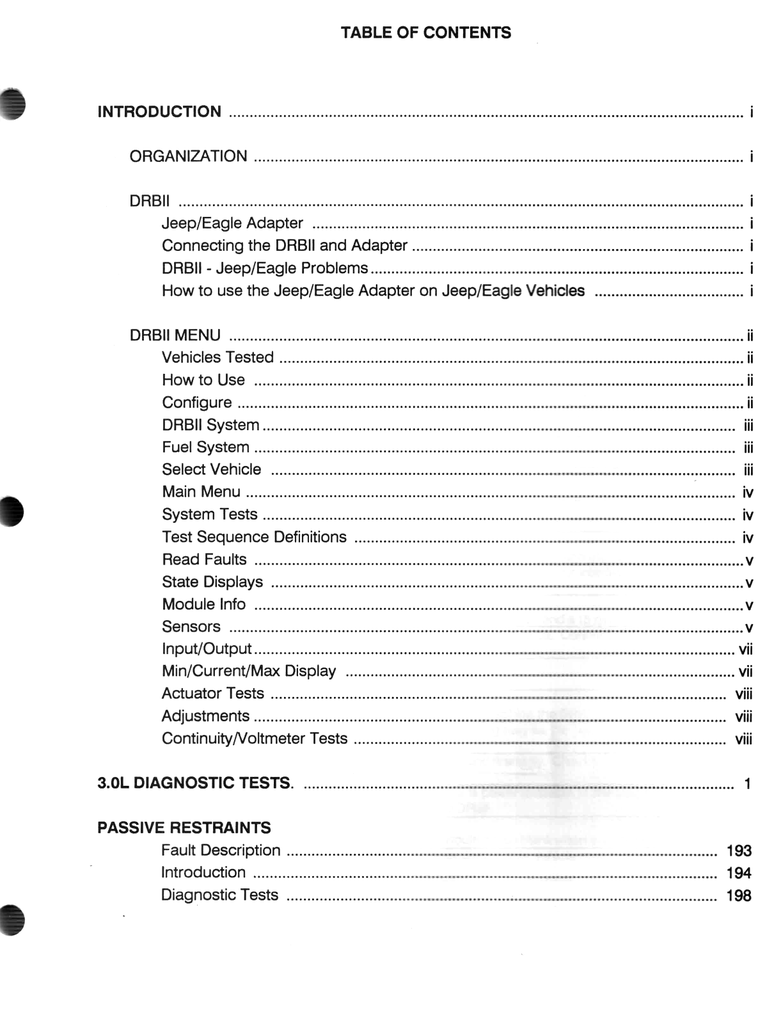

Detailed procedures for diagnosis, troubleshooting, repair, maintenance and adjustment are covered, in the following sections:
DRBII
Jeep/Eagle Adapter
Connecting the DRBII and Adapter
DRB II Jeap/Eagle Problems
How to Use the Jeep/Eagle Adapter on Jeep/Eagle Vehicles
DRBII Menu
Vehicles Tested
How to Use
Configure
DRBII System
Fuel System
Select Vehicle
Main Menu
System Tests
Test Sequence Definitions
Read Faults
State Displays
Module Info
Sensors
Input/Output
Min/Current/Max Display
Actuator Tests
Adjustments
Continuity/Voltmeter Tests
3.0L Diagnostic Tests
Passive Restraints
Fault Description
Introduction
Diagnostic Tests
Wiring Diagram
| Book Title: 1989-90 Dodge/Eagle Monaco/Premier Powertrain Diagnostic Manual |
| Publisher: Chrysler Motors |
| Author: Service and Parts Operations |
| Model: Monaco, Premier |
| Model Years Covered: 1989, 1990 |
| MPN: 81-699-0046 |
| Media Type: Paper |
| Binding: Paperback |
| Language: English |
| Condition: Used - Acceptable |
| Make: Mopar, Dodge, Eagle |
| Edition: Original Factory OEM Print Edition |
| Number of Pages: 257 |
| Year Printed/Published: 1989 |
We have multiple copies of this manual. The picture is representative of condition. You will receive a manual in similar condition. Each manual has its own unique patina from use in a Dealer Service Department.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use and possible markings or mechanic’s notes from use in a dealership service department. Our OEM factory printed manuals are complete and fully usable with no missing sections. Our OEM factory manuals usually cost less than new reprints and online subscriptions. Don’t settle for a difficult-to-use PDF, an incomplete copy, or a hard-to-read reproduction.
