1989-1990 Jeep Cherokee XJ 2.5L Engine Powertrain Diagnostic Procedures
Original Mopar OEM 1989-1990 Jeep Cherokee 2.5L Engine Powertrain Diagnostic Procedures Manual for diagnosis, service, and rebuild of engines used in 1989-1990 Jeep Cherokee (XJ). Not a reproduction.
Used for 1989-1990 in all body styles and trims of Jeep Cherokee.

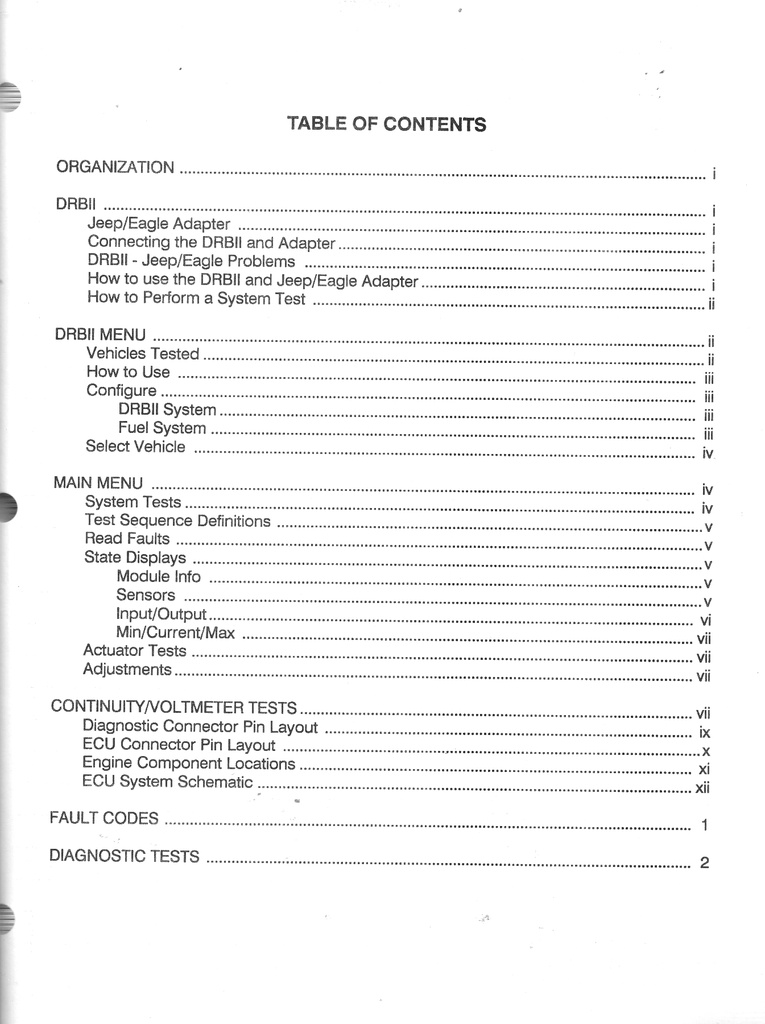

Sections Include:
Organization
DRBII
Jeep/Eagle Adapter
Connecting the DRBII and Adapter
DRBII Jeep/Eagle Problems
How to use the DRBII and Jeep/Eagle Adapter
How to Perform a System Test
DRBII Menu
Vehicles Tested
How to Use
Configure
Select Vehicle
Main Menu
System Tests
Test Sequence Definitions
Read Faults
State Displays
Actuator Tests
Adjustments
Continuity/Voltmeter Tests
Diagnostic Connector Pin Layout
ECU Connector Pin Layout
Engine Component Locations
ECU System Schematic
Fault Code
Diagnostic Tests
Manufacturer’s part number/MPN: 81-699-0044
We have multiple copies of this manual. Cover photo is representative of typical condition. You will receive a copy with similar condition.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use in a dealer service department and possible markings or mechanic’s notes. We sell only complete usable manuals with no missing sections. Don’t settle for an incomplete copy or a hard to read reproduction.
| Book Title: 1990 Jeep XJ 2.5L Powertrain Diagnostic Procedures |
| Author: Service & Parts Division |
| Publication Year: 1990 |
| MPN: 81-699-0044 |
| Make: Mopar, Jeep |
| Model: Cherokee |
| Format: Trade Paperback |
| Binding: Paperback |
| Condition: Used: Acceptable |
| Country/Region of Manufacture: United States |
| WeightMajor: 0 |
| WeightMinor: 15 |
| Package type: Package |
| Condition description: Used. Complete, usable manual with genuine patina. |
| Year of Publication: 1990 |
| Brand: Mopar, Jeep |
| Model Years Covered: 1989, 1990 |
| Language: English |
| Publisher: Chrysler Motors Corporation |
| Edition: Original Factory OEM Edition |
