1990 Mopar Dodge RAM 50 Truck (MMC) 3.0L EFI V-6 Engines Powertrain Diagnostic Procedures
Original Mopar OEM Dodge Truck RAM 50 (MMC) factory 3.0L EFI V-6 Engine Powertrain Diagnostic Procedures Manual for diagnosis, service, and rebuild of electronic Fuel injection V-6 engines used in Dodge Ram 50 Trucks.
Used for 1990 in all body styles and trims of Dodge Ram 50 Trucks including 2WD and 4WD.

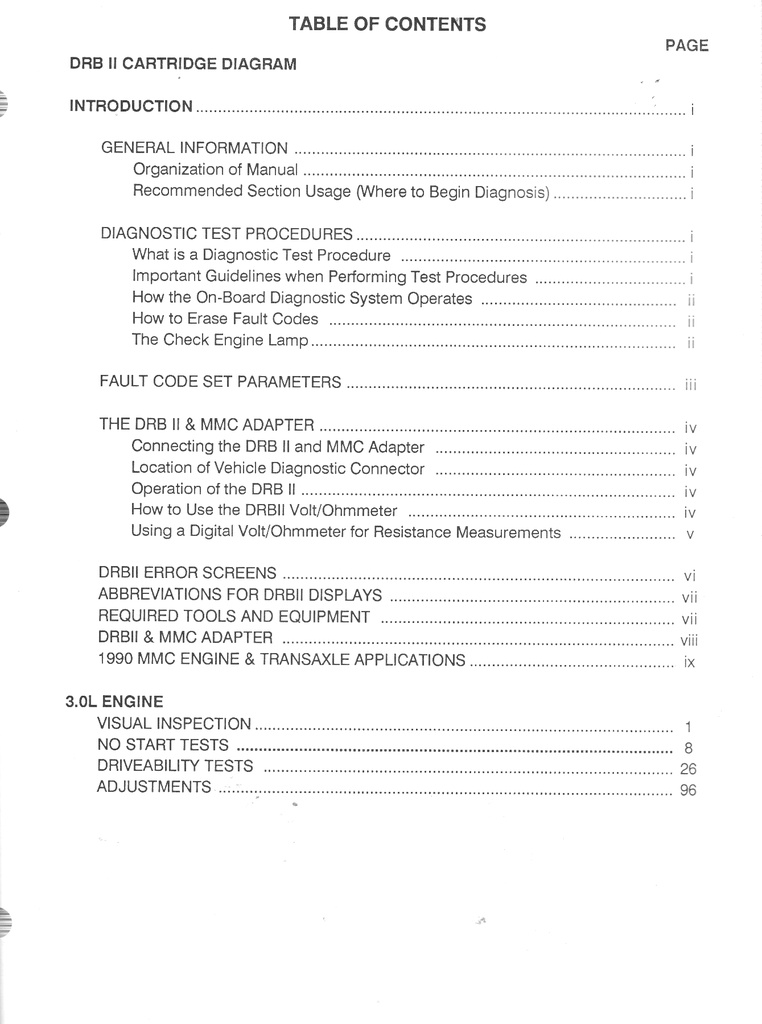

Sections Include:
DRB II Cartridge Diagram
Introduction
General Information
Diagnostic Test Procedures
The On-Board Diagnostic System
Fault Code Set Parameters
THE DRB II and MMC Adapter
Connecting the DRB II and MMC Adapter
Location of Vehicle Diagnostic Connector
Operation of the DRB II
How to use the DRB II Volt/Ohmmeter
DRB II Error Screens
Abbreviations for DRB II Displays
Required Tools and Equipment
1990 MMC Engine & Transaxle Applications
3.0L Engine
Visual Inspection
No Start Tests
Driveability Tests
Adjustments
Manufacturer’s part number/MPN: 81-699-0034
We have multiple copies of this manual. Cover photo is representative of typical condition. You will receive a copy with similar condition.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use in a dealer service department and possible markings or mechanic’s notes. We sell only complete usable manuals with no missing sections. Don’t settle for an incomplete copy or a hard to read reproduction.
| Book Title: 1990 Dodge 50 (MMC) 3.0L Electronic Fuel Injection |
| Author: Service & Parts Division |
| Publication Year: 1990 |
| MPN: 81-699-0034 |
| Make: Mopar, Dodge, Ram |
| Model: Dodge Ram 50 |
| Format: Trade Paperback |
| Binding: Paperback |
| Condition: Used: Acceptable |
| Country/Region of Manufacture: United States |
| WeightMajor: 0 |
| WeightMinor: 12 |
| Package type: Package |
| Condition description: Used. Complete, usable manual with genuine patina. |
| Year of Publication: 1990 |
| Brand: Mopar, Dodge, Ram |
| Model Years Covered: 1990 |
| Language: English |
| Publisher: Chrysler Motors Corporation |
| Edition: Original Factory OEM Edition |
