1990 Mopar Dodge RAM Truck/Van 3.9L/5.2L/5.9L EFI V-6 & V-8 Engines Powertrain Diagnostic Procedures
Original Mopar OEM Dodge Truck RAM factory 3.9L/5.2L/5.9L EFI V-6 and V-8 Engine Powertrain Diagnostic Procedures Manual for diagnosis, service, and rebuild of electronic Fuel injection V-6 and V-8 engines used in Dodge Ram Trucks and Full-Sized Vans. Not a reproduction.
Used for 1990 in all body styles and trims of Dodge Ram Trucks and Dodge Ram Vans.

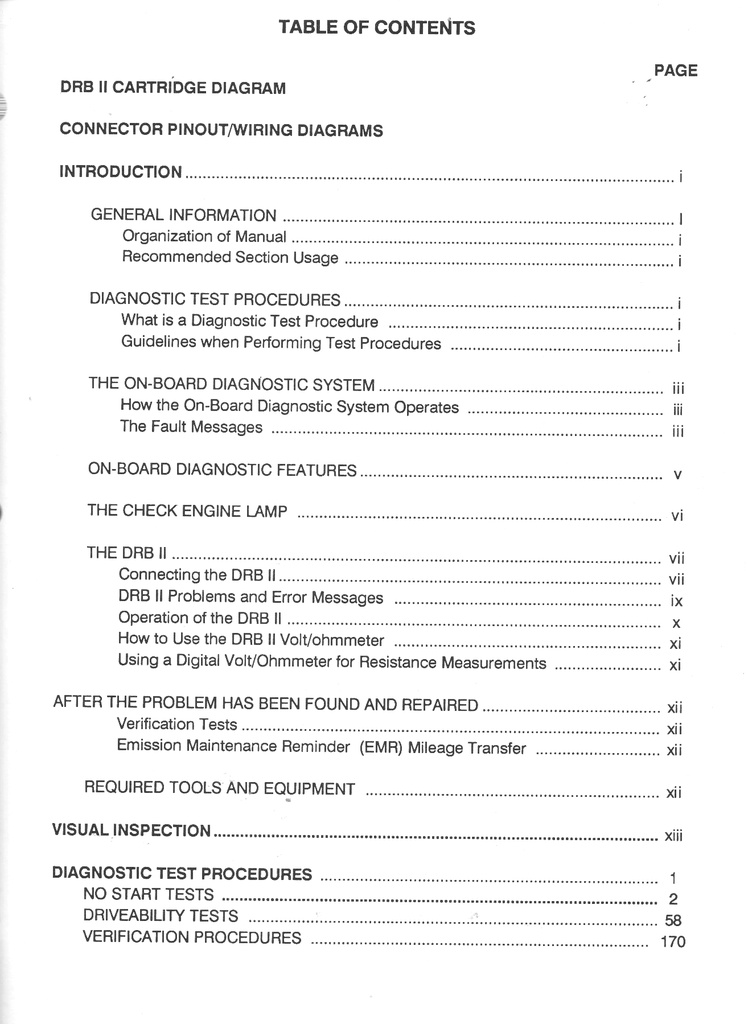

Sections Include:
DRB II Cartridge Diagram
Connector Pinout/Wiring Diagrams
Introduction
General Information
Diagnostic Test Procedures
The On-Board Diagnostic System
The Fault Messages
On-Board Diagnostic Features
The Check Engine Lamp
On-Board Diagnostic System
The DRB II
Connecting the DRB II
DRB II Problems and Error Messages
How to Use the DRB II Volt/Ohmmeter
After the Problem Has Been Found and Repaired
Verification Tests
Emission Maintenance Reminder (EMR) Mileage Transfer
Required Tools and Equipment
Visual Inspection
Diagnostic Test Procedures
No Start Tests
Driveability Tests
Verification Procedures
Manufacturer’s part number/MPN: 81-699-0025
We have multiple copies of this manual. Cover photo is representative of typical condition. You will receive a copy with similar condition.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use in a dealer service department and possible markings or mechanic’s notes. We sell only complete usable manuals with no missing sections. Don’t settle for an incomplete copy or a hard to read reproduction.
| Book Title: 1990 Dodge 3.9/5.2/5.9L EFI Powertrain Diagnostic Procedures |
| Author: Service & Parts Division |
| Publication Year: 1990 |
| MPN: 81-699-0025 |
| Make: Mopar, Dodge, Ram |
| Model: Dodge Truck, Dodge Van, Ram Truck, Ram Van |
| Format: Trade Paperback |
| Binding: Paperback |
| Condition: Used: Acceptable |
| Country/Region of Manufacture: United States |
| WeightMajor: 1 |
| WeightMinor: 3 |
| Package type: Package |
| Condition description: Used. Complete, usable manual with genuine patina. |
| Year of Publication: 1990 |
| Brand: Mopar, Dodge, Ram |
| Model Years Covered: 1990 |
| Language: English |
| Publisher: Chrysler Motors Corporation |
| Edition: Original Factory OEM Edition |
