1992 Mopar Dodge RAM Truck/Van 3.9L/5.2L MPI V-6 & V-8 Engines Powertrain Diagnostic Procedures
Original Mopar OEM Dodge RAM factory 3.9L/5.2L MPI V-6 and V-8 Engine Powertrain Diagnostic Procedures Manual for diagnosis, service, and rebuild of Magnum V-6 and V-8 engines used in 1992 Dodge Ram Trucks and Vans. Not a reproduction.
Used for 1992 in all body styles and trims of Ram Trucks and Ram Vans.

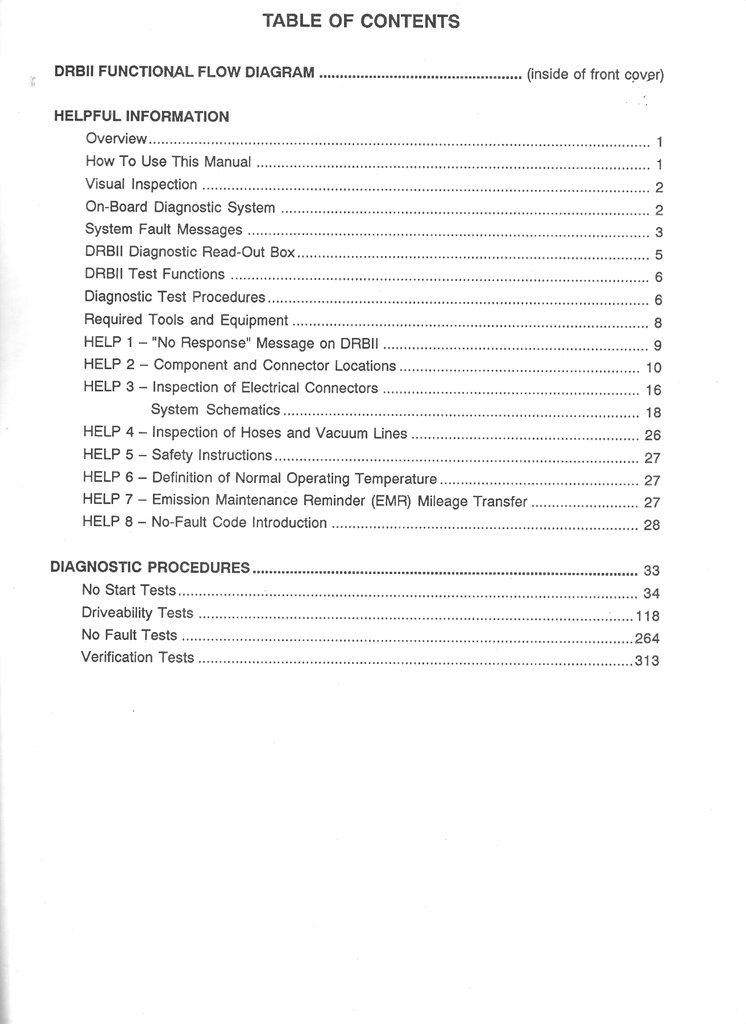

Sections Include:
Helpful Information
Overview
How to Use This Manual
Visual Inspection
On-Board Diagnostic System
System Fault Messages
DRBII Diagnostic Read-Out Box
DRBII Test Function
Required Tools and Equipment
HELP 1 - "No Response" Message on DRBII
HELP 2 - Component and Connector Location
HELP 3 - Inspection of Electrical Connectors
System Schematics
HELP 4 - Inspection of Hoses and Vacuum Lines
HELP 5 - Safety Instruction
HELP 6 - Definition of Normal Operating Temperature
HELP 7 - Emission Maintenance Reminder (EMR) Mileage Transfer
HELP 8 - Np-Fault Code Introduction
Diagnostic Information and Procedures
No Start Tests
Driveability Tests
No Fault Tests
Verification Tests
Manufacturer’s part number/MPN: 81-699-0220
We have multiple copies of this manual. Cover photo is representative of typical condition. You will receive a copy with similar condition.
Our “Acceptable” or “Used” grade books have genuine shop patina. They may have some wear from use in a dealer service department and possible markings or mechanic’s notes. We sell only complete usable manuals with no missing sections. Don’t settle for an incomplete copy or a hard to read reproduction.
| Book Title: 1992 3.9L/5.2L MPI Powertrain Diagnostic Procedures |
| Author: Chrysler Corporation |
| Publication Year: 1992 |
| MPN: 81-699-0220 |
| Make: Mopar, Dodge, Ram |
| Model: Ram Truck, Ram Van |
| Format: Trade Paperback |
| Binding: Paperback |
| Condition: Used: Acceptable |
| Country/Region of Manufacture: United States |
| WeightMajor: 1 |
| WeightMinor: 12 |
| Package type: Package |
| Condition description: Used. Complete, usable manual with genuine patina. |
| Year of Publication: 1992 |
| Brand: Mopar, Dodge, Ram |
| Model Years Covered: 1992 |
| Language: English |
| Author: Chrysler Corporation |
| Publisher: Chrysler Corporation |
| Edition: Original Factory OEM Edition |
